Waste Compactors, Marine Waste Compactor. We are Manufacturer, Exporter and Supplier & our setup is situated at Pune, Maharashtra, India


     Our Product Range



Request A Quote
pdf

Heavy duty waste compactors for garbage management in marine applications to comply with increased stringent Garbage regulations in marine & offshore industry. Waste Compactors like Empty Drums, Boxes/Cartons, Metal Cans, Plastic Bottles, Cardboard, Paper, used Filters & similar waste produced on board can be easily compacted to smaller volumes for safe & efficient storage. Compacted waste (1/10' Of original volume) can be stored in more quantity for longer duration & can be disposed off at a convenient & most economical port.

Salient Features
• Rugged Design with high compaction force
• Great reduction in Trash volume
• Automatic Hydraulic operation with Powerful stroke
• Safety interlock for door & Overload protection for motor
• Simpler operation and easier to Install
• Low Initial & operating costs with very little maintenance
• Substantial Reduction In waste handling costs
• Rapid compaction stroke with more compression output
• Heavy duty structure with fixed mounting arrangement
• Special Electroless Nickel Anti-Corrossion Coating for critical components

Application
Compactors are designed to use on all types of ships & offshore applications.
marine-waste

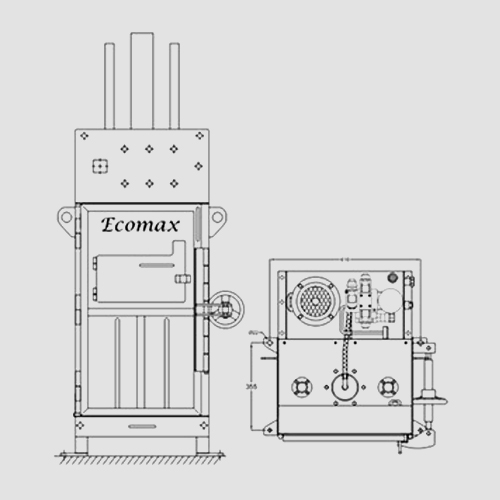

Compactor Technical Specifications

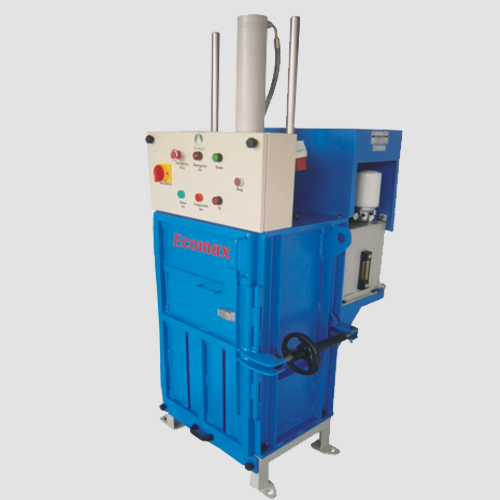

Compactor-Technical Model Ecomax 100 - 4
• Compaction Chamber Volume : 100 Litres
• Compaction Power : 4.0 Ton
• Compaction Ratio : 6 : 1
• Compaction Stroke Length : 600 mm
• Compaction Cycle : 30 Seconds
• Overall Dimensions : 660 X 730 X 1715 mm
• 3-Phase 50/60 Hz 380-440 V, 3.0 HP
• Safety : Control Circuit Voltage 24 V DC, Interlock for door & Overload protection for motor

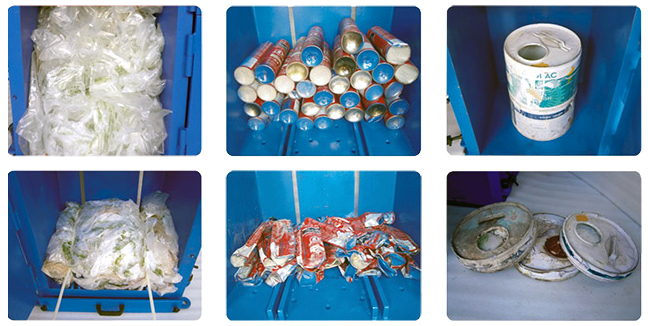

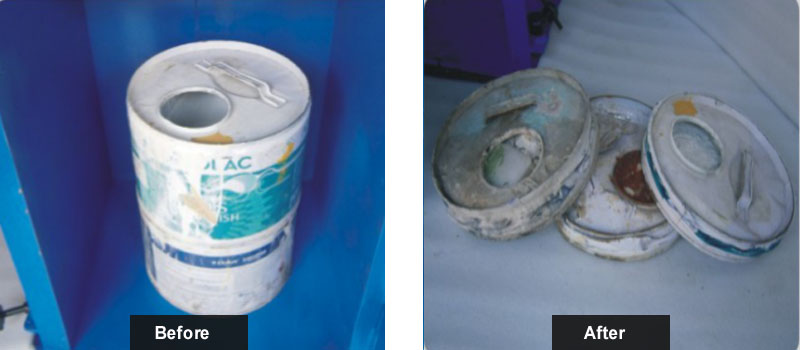

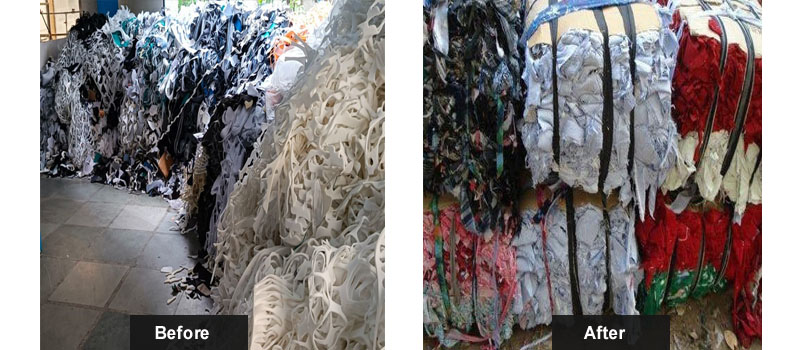

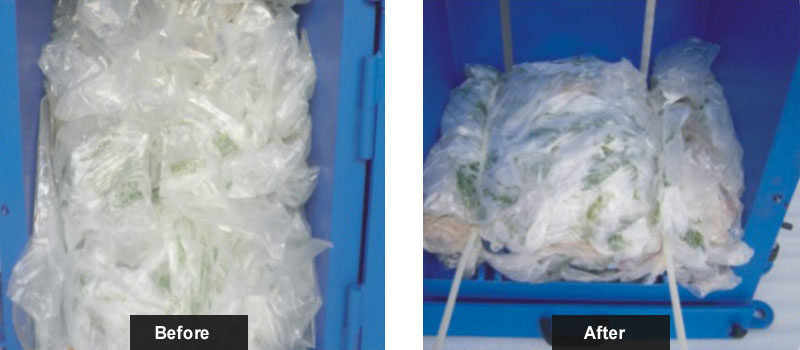

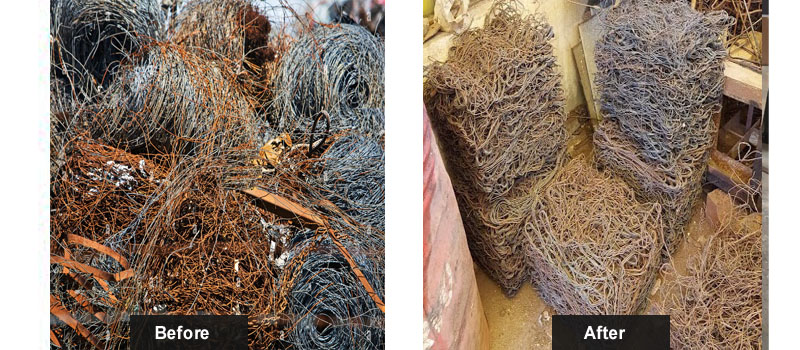

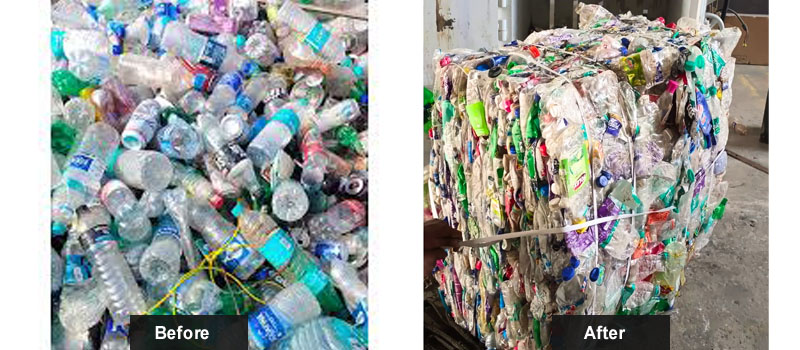

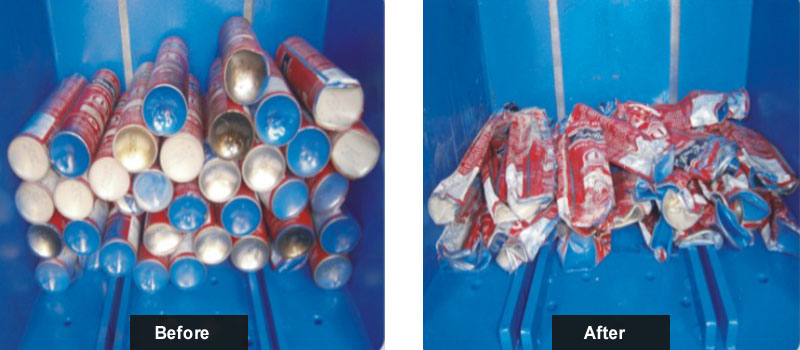

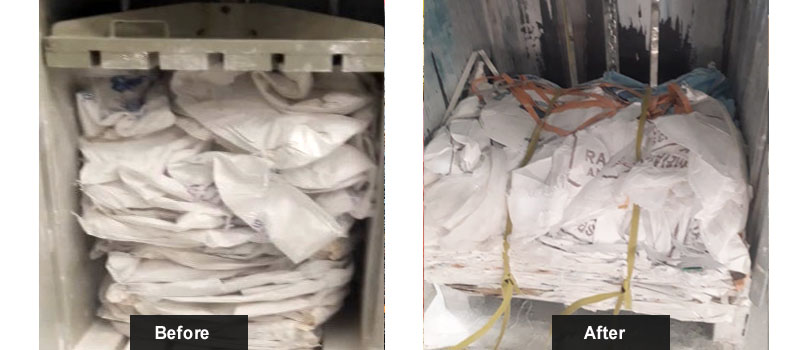

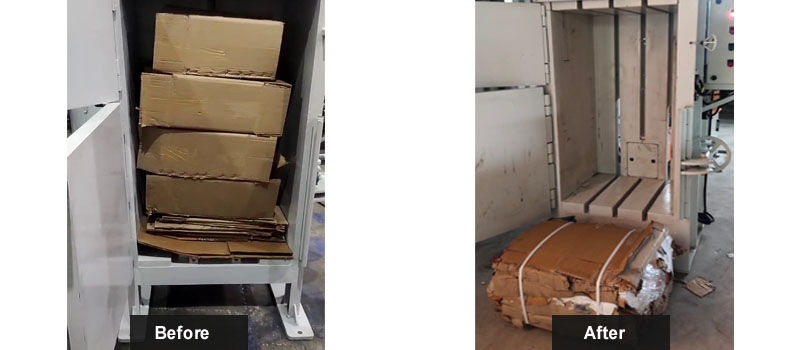

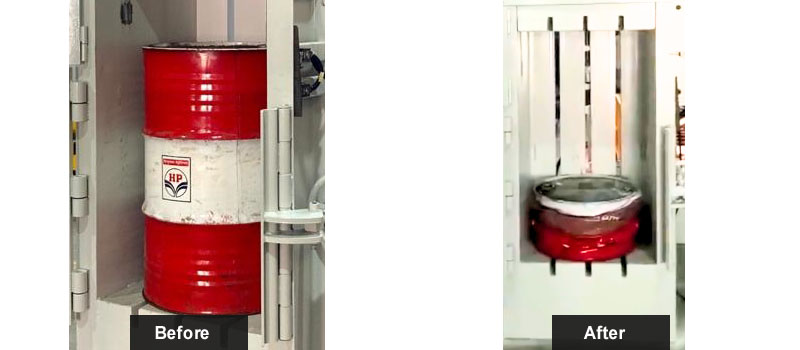

  Compacted Waste : Before & After
Compacted-Waste     Compacted-Waste     Compacted-Waste
Compacted-Waste     Compacted-Waste     Compacted-Waste
Note : Different capacity ratings & specifications can be provided as per customer requirement.
